Features
- Large HMS shape big enough to fit multiple ropes or connections
- 14mm loading surface for increased wear resistance
- Keylock clean nose for snag free connection
- Easy to use with gloved hands
More Information
Locking Gate Types:

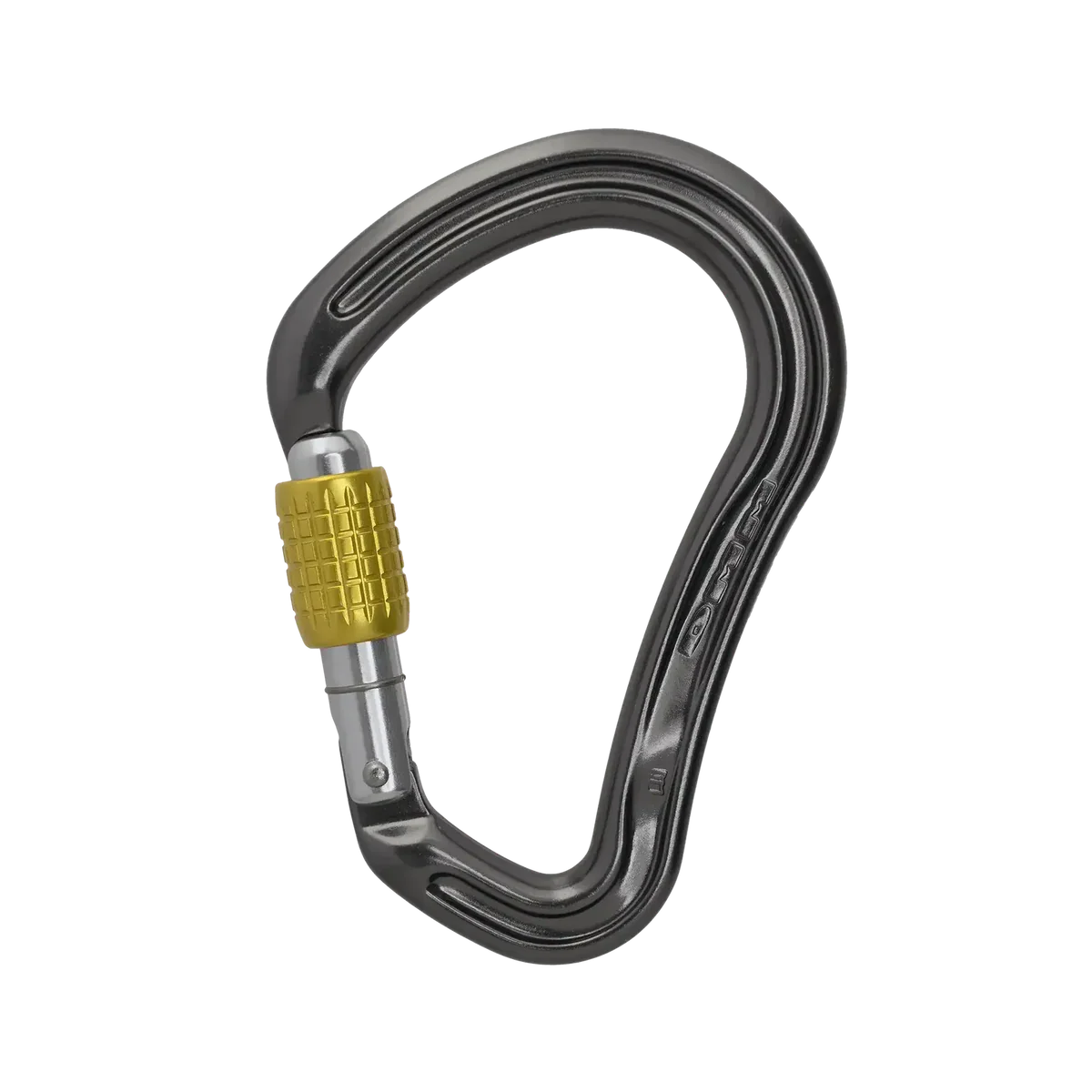

Screwgate : Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

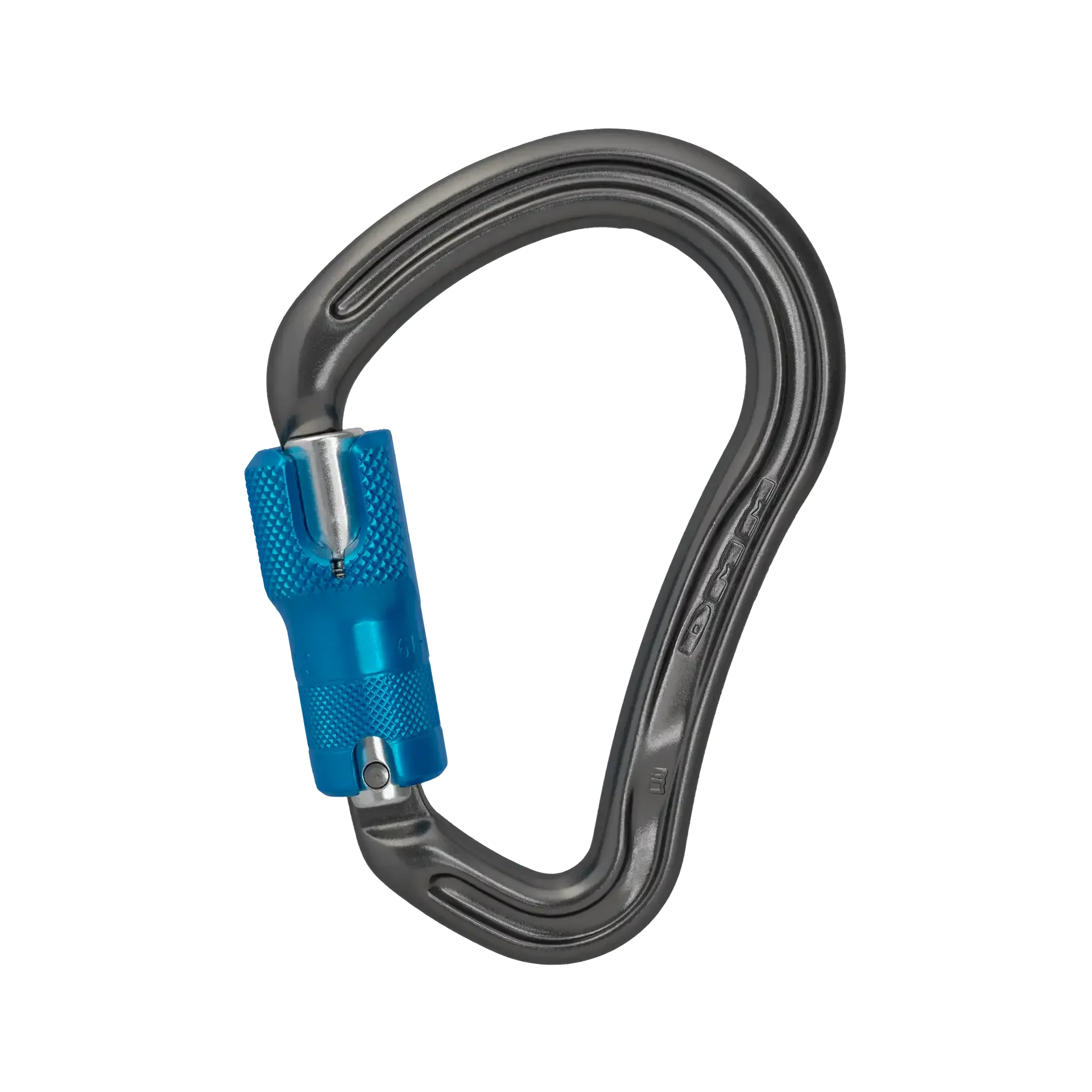

Kwiklock : Auto-locking gate requiring two distinct actions to open.

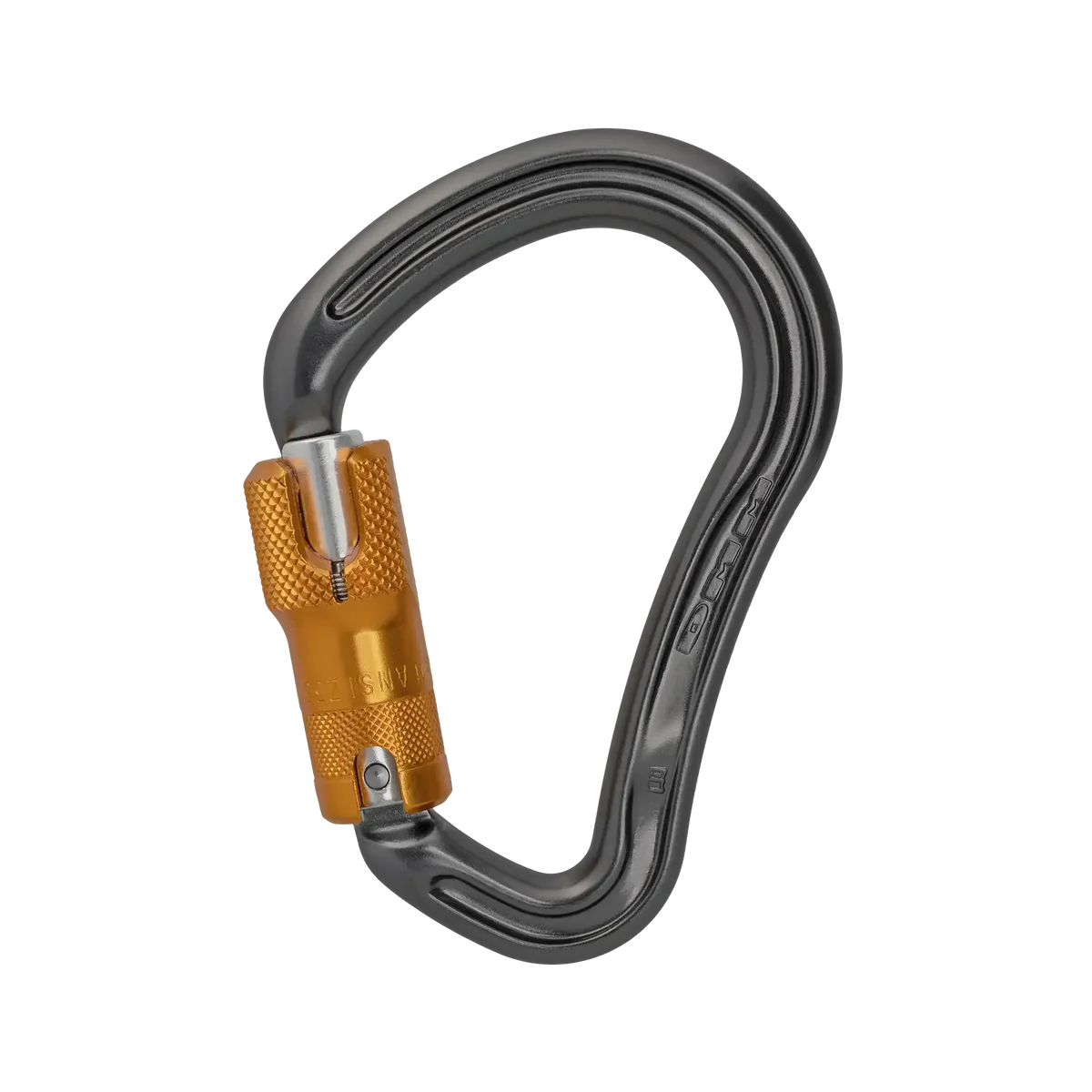

Locksafe : Auto-locking gate requiring three distinct actions to open.
Durolock : Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).
Kwiklock ANSI : Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Locksafe ANSI : Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Tech specifications
| Locking Gate Type | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|
| Screwgate | 83 x 122mm | 95g | 30kN | 12kN | 9kN | 24mm | EN362:2004 B EN12275:2013 B/H UIAA121:2009 |
| Kwiklock ANSI | 83 x 122mm | 115g | 30kN | 16kN | 9kN | 19mm | EN362:2004 B EN12275:2013 B/H ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
| Locksafe ANSI | 83 x 122mm | 115g | 30kN | 16kN | 9kN | 19mm | EN362:2004 B EN12275:2013 B/H ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |

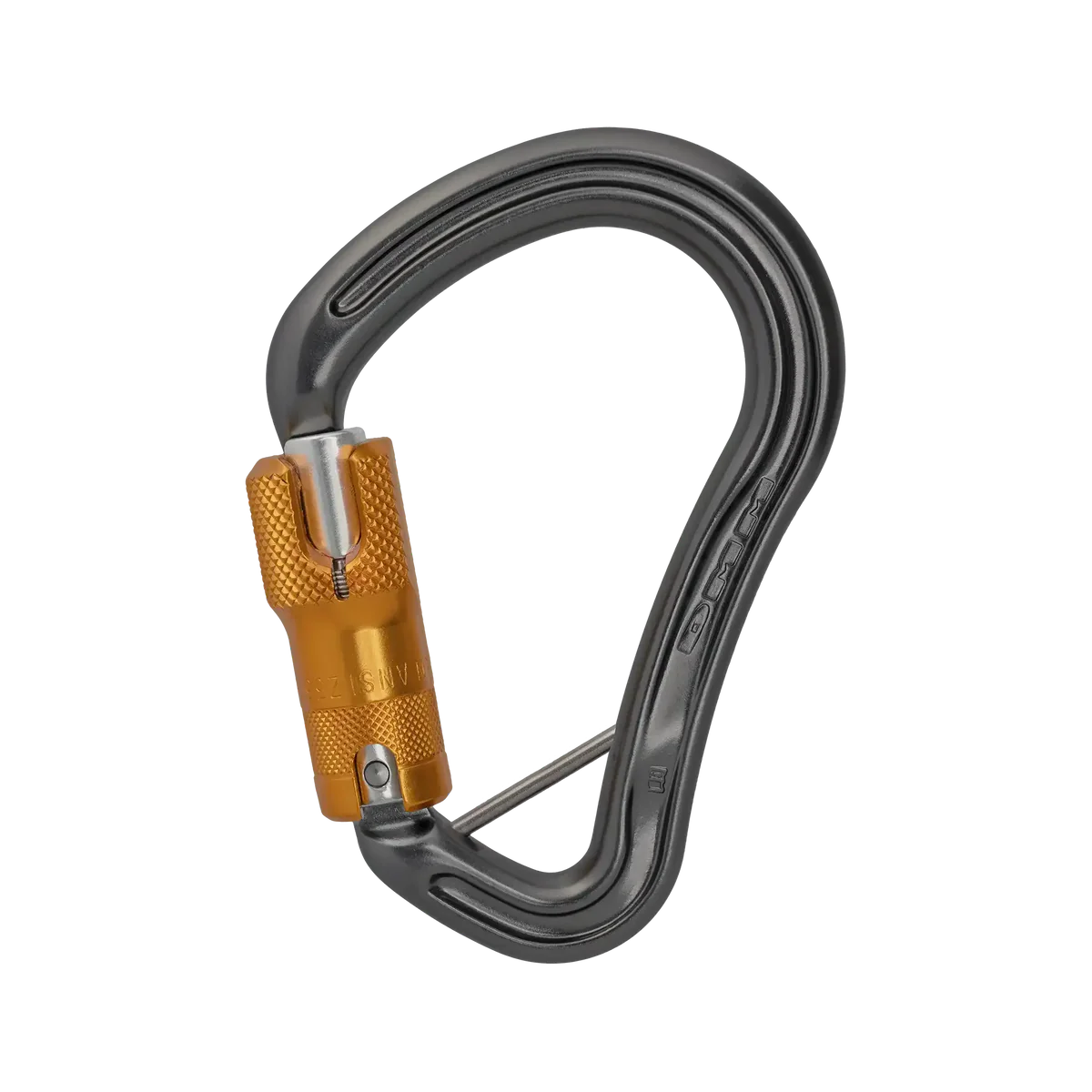

| Locksafe ANSI w/Captive Bar | 83 x 122mm | 115g | 30kN | 16kN | 9kN | 19mm | EN362:2004 B/T EN12275:2013 B/H/T ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
