DMM AmericanO ANSI
Price range: ₹2,500.00 through ₹2,600.00
An oval that packs a punch. Larger than our classic Ultra O, it shares the same stable loading characteristics but with more volume when required.
The AmericanO is also DMM’s first ANSI (American National Standards Institute) compliant true oval connector. It is especially suited for industries that apply this standard. A DMM oval for all applications.
The DMM AmericanO ANSI is DMM’s first ANSI-compliant oval connector, designed for applications where predictable loading, a generous size, and secure locking performance are important. Its true oval shape provides consistent loading characteristics, while the larger dimensions make it practical to operate when wearing gloves.
Available with Kwiklock ANSI and Locksafe ANSI locking gate options, the AmericanO ANSI offers different auto-locking mechanisms to suit specific user requirements. Both ANSI variants are designed to meet additional performance requirements for minor-axis, side-load, and gate-face testing.
Key Features
- DMM’s first ANSI-compliant oval connector
- True oval shape for predictable loading
- Large size suitable for use with gloves
- Available with Kwiklock ANSI and Locksafe ANSI gate options
- 25kN major-axis strength
- 16kN minor-axis strength
- 7kN gate-open strength
- ANSI/ASSE Z359.12-2019 certified
- CAN/CSA Z259.12-16 certified
- Also certified to EN362:2004 B and EN12275:2013 B
True Oval Shape
The DMM AmericanO ANSI features a true oval shape designed to provide predictable loading. Its symmetrical profile makes it a practical connector for applications where consistent positioning and loading characteristics are important.

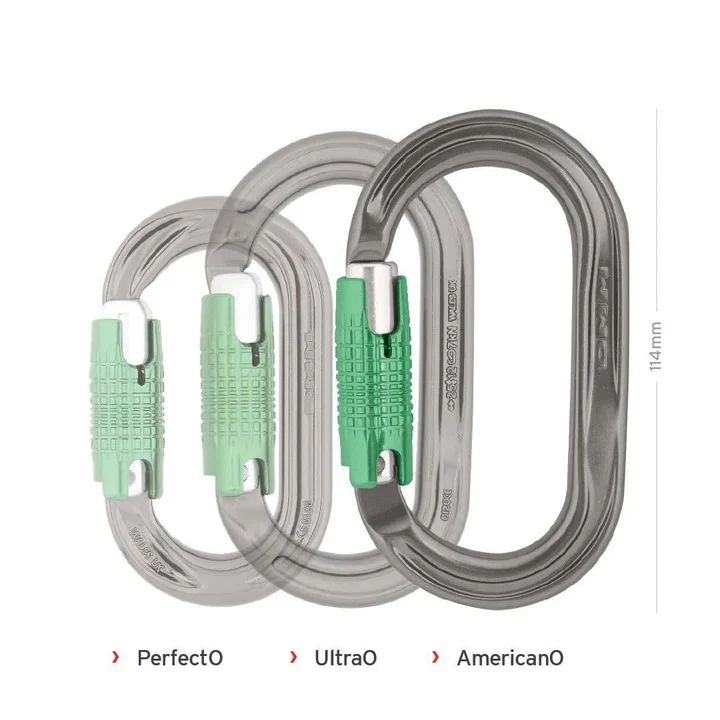

Large Design for Gloved Use
With dimensions of 71 x 114mm, the AmericanO ANSI provides a generous form factor that is suitable for use while wearing gloves. The large gate opening also provides convenient access when connecting equipment.

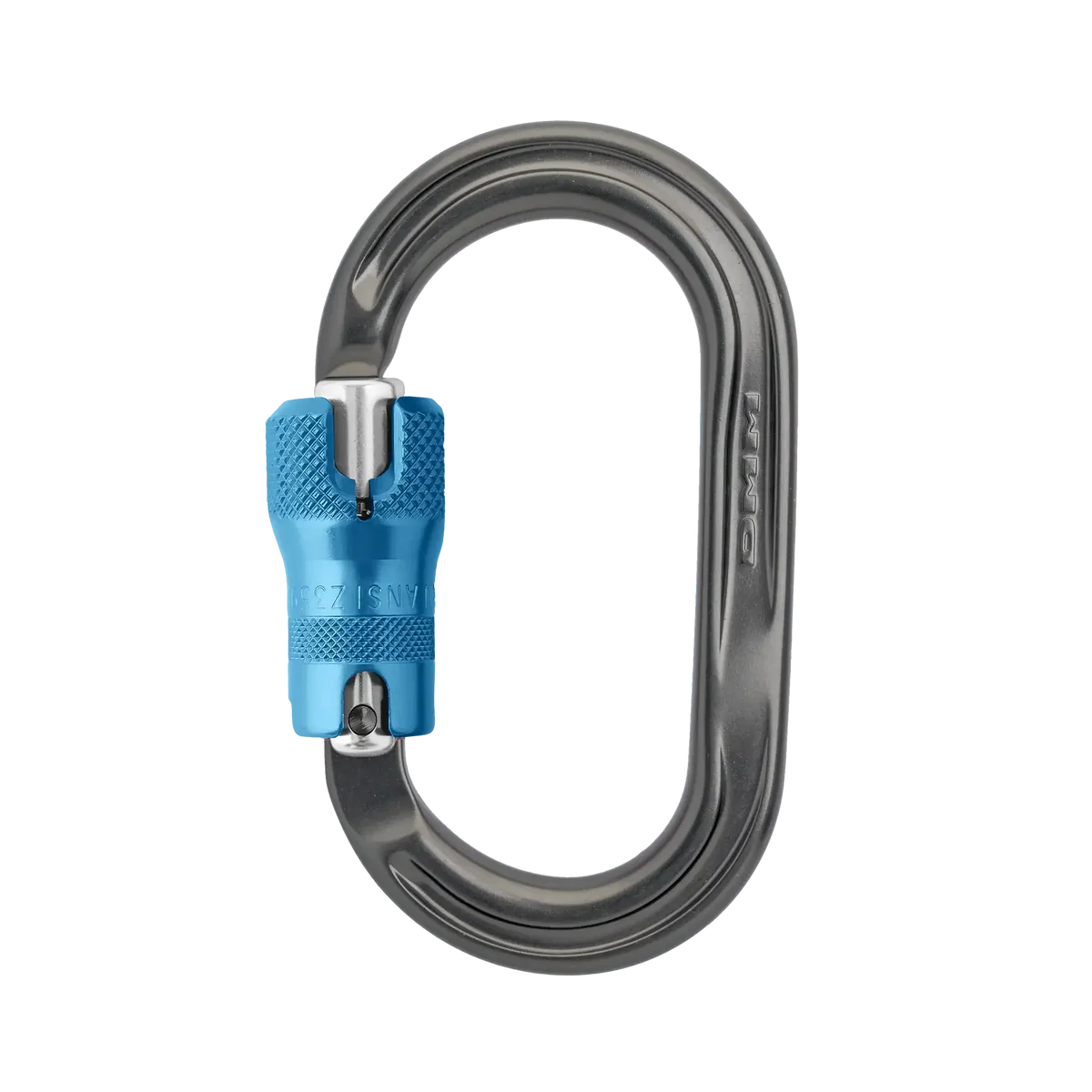

Kwiklock ANSI
The Kwiklock ANSI is an auto-locking gate that requires two distinct actions to open. In addition to the standard Kwiklock gate action, the ANSI version is required to exceed 16kN in minor-axis, side-load, and gate-face tests.
It has a 21mm gate opening and weighs 102g.

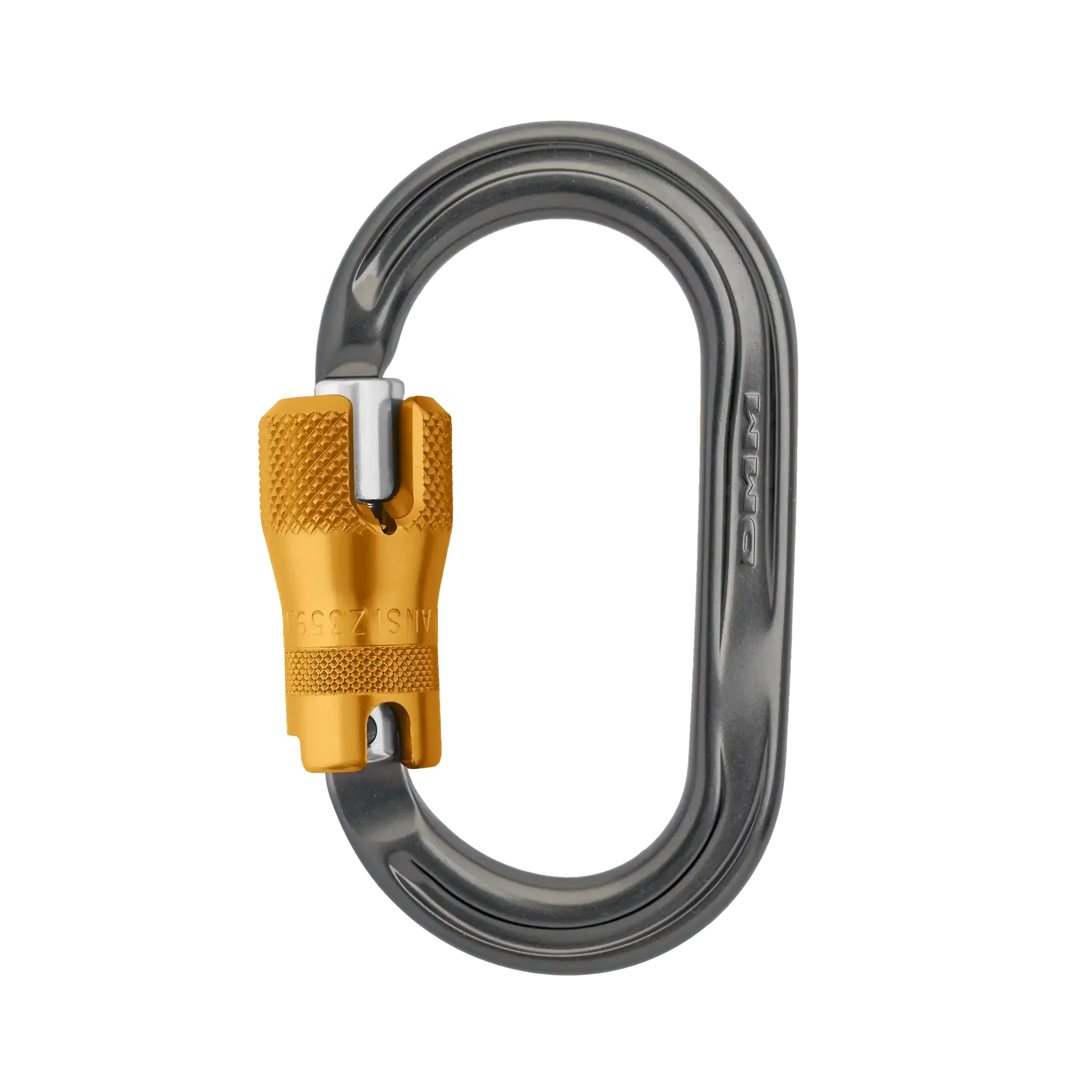

Locksafe ANSI
The Locksafe ANSI uses an auto-locking gate requiring three distinct actions to open. Like the Kwiklock ANSI version, it is required to exceed 16kN in minor-axis, side-load, and gate-face tests.
The Locksafe ANSI weighs 101g and has an 18mm gate opening.
Strong and Certified Construction
Both versions provide a 25kN major-axis MBS, 16kN minor-axis MBS, and 7kN gate-open MBS. The AmericanO ANSI is certified to EN362:2004 B, EN12275:2013 B, ANSI/ASSE Z359.12-2019, and CAN/CSA Z259.12-16.
Technical Specifications
| Specification | Kwiklock ANSI | Locksafe ANSI |
|---|---|---|
| Locking Gate Type | Kwiklock ANSI | Locksafe ANSI |
| Dimensions | 71 x 114mm | 71 x 114mm |
| Weight | 102g | 101g |
| MBS – Major Axis | 25kN | 25kN |
| MBS – Minor Axis | 16kN | 16kN |
| MBS – Gate Open | 7kN | 7kN |
| Gate Opening | 21mm | 18mm |
| Certification | EN362:2004 B; EN12275:2013 B; ANSI/ASSE Z359.12-2019; CAN/CSA Z259.12-16 | EN362:2004 B; EN12275:2013 B; ANSI/ASSE Z359.12-2019; CAN/CSA Z259.12-16 |
Choose the DMM AmericanO ANSI
The DMM AmericanO ANSI combines a true oval profile, large glove-friendly design, strong load ratings, and ANSI-compliant locking options for professional applications. Choose between the two-action Kwiklock ANSI and three-action Locksafe ANSI versions to suit your equipment requirements. Shop the AmericanO ANSI from Backpackers Outdoor for your professional climbing and work-at-height equipment needs.
| Gate Type : | Kwiklock ANSI, Locksafe ANSI |
|---|
