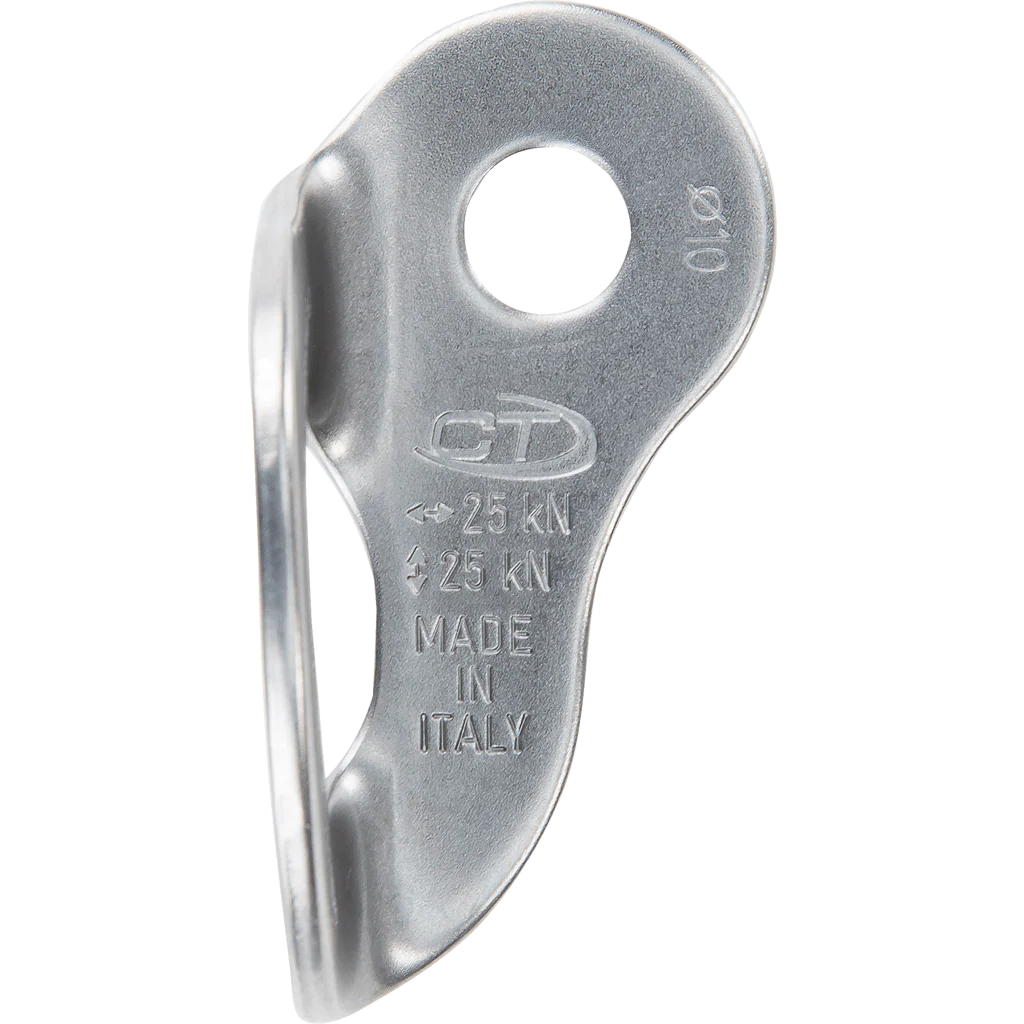

CT PLATE 10 Anchor Plate

The CT PLATE 10 Anchor Plate is a multidirectional anchor plate made from AISI 316L stainless steel, designed for outdoor anchoring applications. It provides a robust attachment point with a 25 kN breaking load in both traction and extraction, making it suitable for compatible fixed anchor systems.

Featuring a 10 mm diameter hole, the plate is designed for use with the specified ANCHOR BOLT 10. When the compatible components are used as intended, the resulting installation can comply with EN 959, UIAA-123, and EN 795-A requirements.

Key Features

• Multidirectional anchor plate for outdoor use
• Made from AISI 316L stainless steel
• 10 mm hole diameter
• 25 kN breaking load in traction
• 25 kN breaking load in extraction
• Lightweight 45 g construction
• Designed for use with ANCHOR BOLT 10
• Suitable for compatible fixed anchor systems

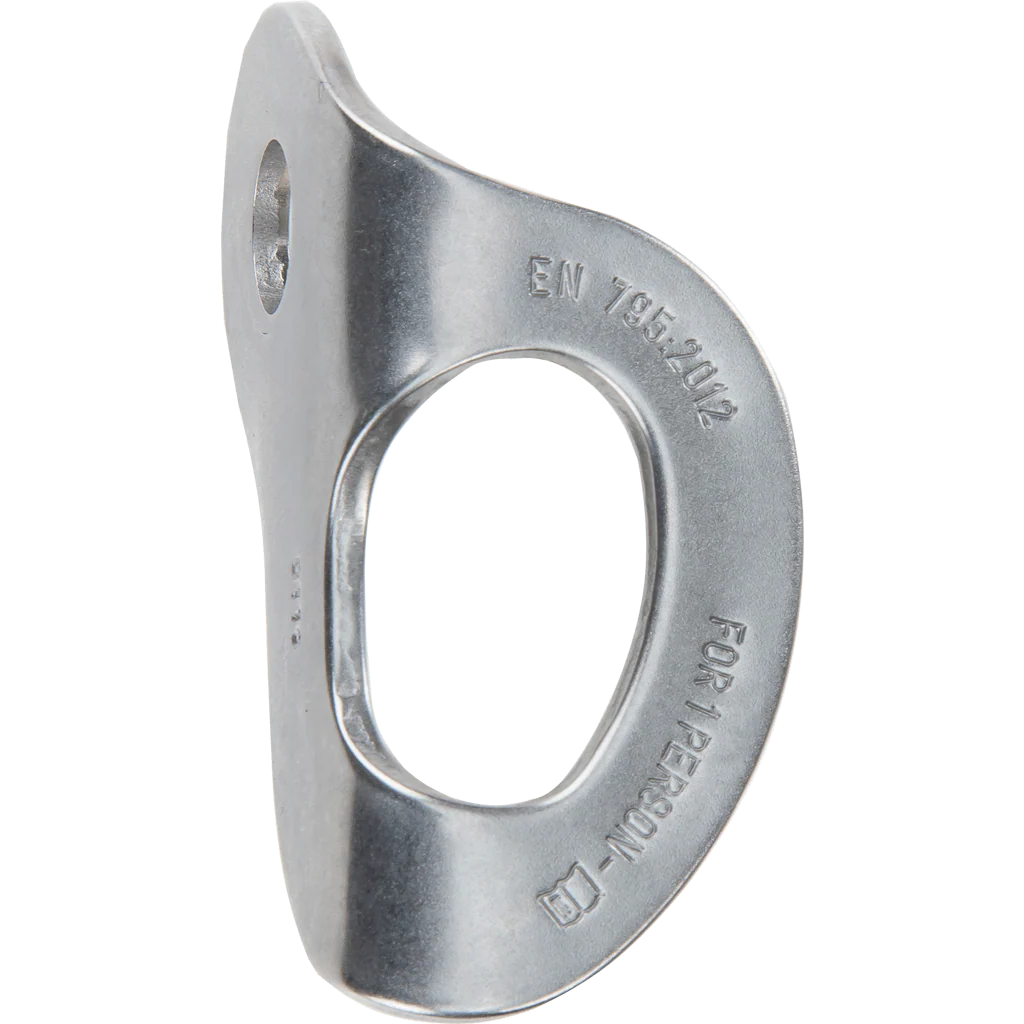

• Conforms to EN 795:2012-A and EN 959:2007

Durable AISI 316L Stainless Steel Construction

The CT PLATE 10 Anchor Plate is manufactured from AISI 316L stainless steel, providing a durable material for outdoor anchoring applications. Its multidirectional design allows the connected equipment to be positioned according to the requirements of the installation.

The stainless steel construction is suited to outdoor environments where reliable anchoring hardware is required.

25 kN Breaking Load

The anchor plate provides an elevated breaking load of 25 kN in traction and 25 kN in extraction. These specifications make it important to use the plate with compatible anchoring components and according to the manufacturer’s intended installation method.

The 10 mm mounting hole is designed specifically for compatibility with the ANCHOR BOLT 10 model.

Designed for Use with ANCHOR BOLT 10

To obtain an installation intended to comply with EN 959, UIAA-123, and EN 795-A, the manufacturer specifies using the ANCHOR BOLT 10 together with the CT PLATE 10.

The correct combination of anchor plate and compatible bolt is essential when creating an anchoring system designed according to the applicable standards.

Technical Specifications

Stainless Steel Anchor Plate for Outdoor Anchoring

The CT PLATE 10 Anchor Plate combines AISI 316L stainless steel construction, a 10 mm mounting hole, and 25 kN breaking loads in both traction and extraction. Designed for use with the specified ANCHOR BOLT 10, it is a practical component for compatible fixed anchor installations. Shop the CT PLATE 10 Anchor Plate at Backpackers Outdoor for your professional anchoring equipment requirements.
